ID # 67943108

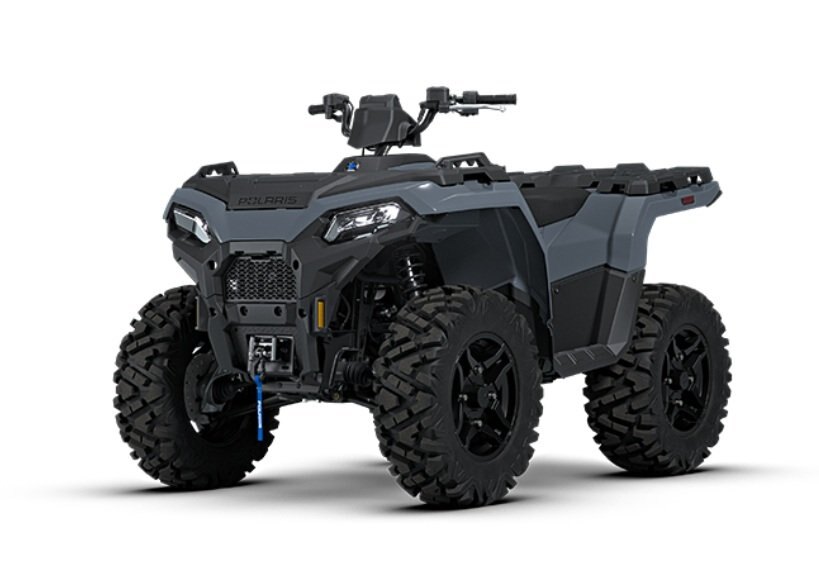

2027 Polaris® Sportsman 500 Stealth Gray

Videos
Call for Price
Overview

TACKLE THE DAY. ENJOY THE RIDE.

Built for your day, Sportsman 500 delivers legendary performance and versatility for work and play.

SAFETY FEATURES INCLUDE:

  • Youth RIDE CONTROL: Pin-code start, adjustable speed limiter, geofencing, Helmet Aware Technology
  • Seat belt interlocking system
  • Safety flag
  • Safety nets
  • Free online safety training
Specifications
Model
Sportsman
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Polaris
Color
Stealth Gray
AGE
10+
WIDTH
48"
Clearance
10"
features

FUN TO RIDE

Engineered suspension with confident power and ground clearance make each ride smoother and more enjoyable.

2027 Polaris® Sportsman 500 Stealth GrayINDEPENDENT REAR SUSPENSION

A Smoother Ride

Our legendary independent rear suspension reduces the impact of rough terrain by soaking up bumps—delivering a smoother ride.

2027 Polaris® Sportsman 500 Stealth GrayGROUND CLEARANCE

Tame More Terrain

Up to 11.5" of ground clearance gives you more space to clear rocks, logs, and uneven terrain—boosting confidence on the trail.

2027 Polaris® Sportsman 500 Stealth GrayMULTI-SELECT EPS

Less Fatigue, More Fun

Dial in the steering for the ride. Multi-select electronic power steering lets you adjust your steering assist for heavy hauling or light cruising—so work feels easier and rides stay comfortable.

2027 Polaris® Sportsman 500 Stealth GrayPower Through Your Day

33 HP delivers dependable power so you can handle chores and explore new terrain without compromise.

Easy To Own

Sportsman 500 makes ownership easy with features like inline shifting and sealed suspension bushings so you can spend more time riding.

2027 Polaris® Sportsman 500 Stealth GrayTASK TO TRAIL TRACTION

AWD with auto-locking front drive automatically engages when it senses tire slip, giving you added traction across changing terrain without additional input.

2027 Polaris® Sportsman 500 Stealth GraySTAY FOCUSED ON THE RIDE

Automatic PVT Transmission with inline shifting delivers smooth, clutch‑free transitions between forward and reverse, giving you more controlled power when navigating challenging terrain.

2027 Polaris® Sportsman 500 Stealth GrayRIDE MORE. WRENCH LESS.

Sealed suspension bushings protect against dirt and grime, delivering smoother rides and longer-lasting performance without extra upkeep.

engine & drivetrain
Cooling
Liquid
Horsepower
33
Engine Type
ProStar 4-stroke SOHC single cylinder
Drive System Type
All-wheel drive with auto-locking front drive
Fuel System/Battery
Electronic fuel injection / 340 CCA
Cylinders Displacement
499 cc
Transmission/Final Drive
Automatic PVT P/R/N/L/H inline shifting
dimensions
Wheelbase
50.5" (128.3 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Curb Weight
813 lb (367 kg)
Seat Height
33.25" (84.5 cm)
Fuel Capacity
4.5 gal (17.0 L)
Person Capacity
1
Towing Capacity
1,350 lbs. (612 kg)
Ground Clearance
11.5" (29 cm)
Payload Capacity
485 lbs. (220 kg)
Estimated Dry Weight
773 lb (351 kg)
Front/Rear Rack Capacity
90 lbs. / 180 lbs. (40.8 kg / 81.6 kg)

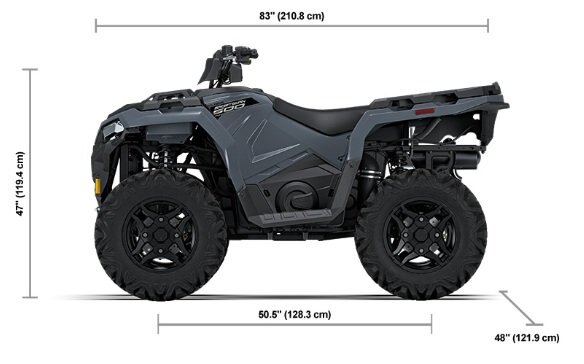

Overall Vehicle Size (L X W X H)
83 x 48 x 47" (210.8 x 121.9 x 119.4 cm)
brakes
Parking Brake
Park in-transmission / lockable hand lever
Front/Rear Brakes
Single lever, 3-wheel hydraulic disc with hydraulic rear foot brake
tires / wheels
Wheels
14" (35.6 cm) aluminum
Rear Tires
26 x 10-14; Duro
Front Tires
26 x 8-14; Duro
suspension
Rear Suspension
Sealed Dual A-arm, IRS 9.5" (24.1 cm) Travel
Front Suspension
Sealed MacPherson strut with 8.2" (20.8 cm) travel
exterior features
Winch
2,500 LB Winch with steel cable
Cargo System
Lock & Ride-compatible 5 gal (18.9L) front dry storage, Front rack tie-downs
lighting & electrical
Lighting
LED bumper lights, single LED brake light/taillight
Electrical System
In-pod trickle charging port, pre-wired for hand and thumb warmers
comfort & convenience
Seat Type
Saddle seat
Ride Control
Not equipped
Speed Limiting
Not equipped
Driver Instrumentation
All-digital gauge: speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light
Polaris P.A.S.S. Anti-Theft System
Not equipped
